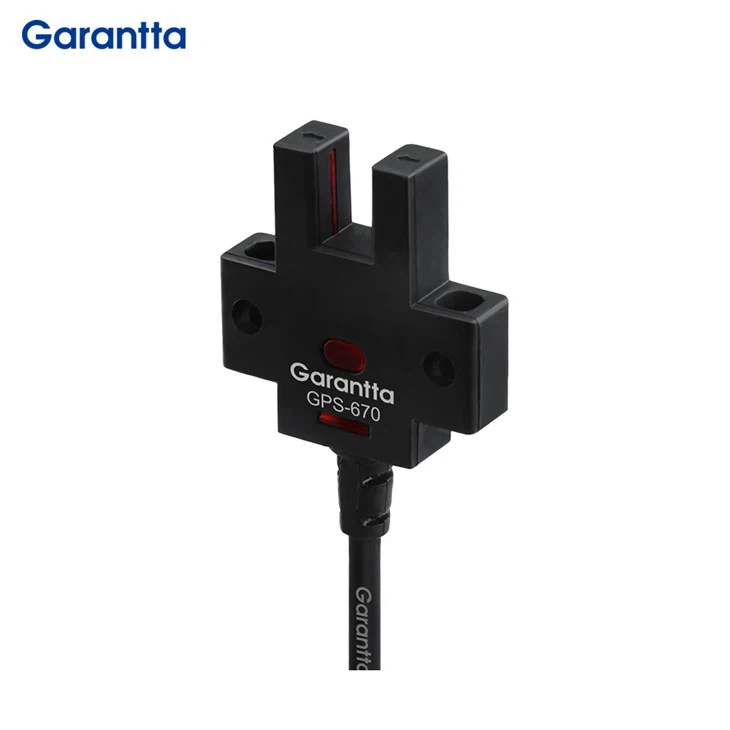

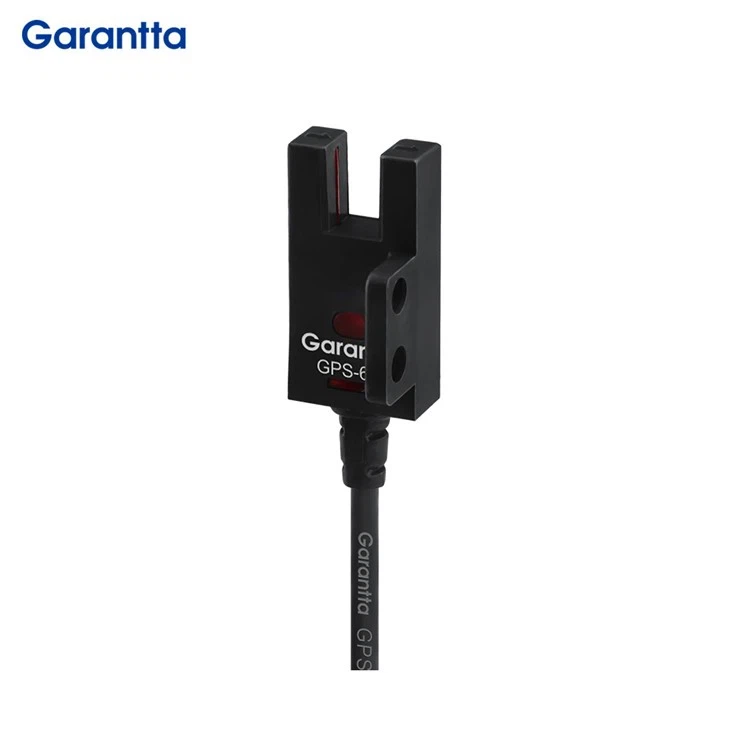

The Photoelectric Slot Sensor is an infrared-sensing photoelectric product composed of an infrared emitter tube and an infrared receiver tube. The width of the slot determines the strength of the induction receiving model and the distance of the received signal. Using light as a medium, infrared light between the emitter and receiver is received and converted to detect the position of an object. The Photoelectric Slot Sensor Switch is also non-contact, with less constraint from the detection object, high detection accuracy, and high detection energy for small objects. The application is very extensive.
Main Features
1.Complete range of products; Extra small size, Can be installed with M2/M3 screws
2.Integrated housing: The Photoelectric Slot Sensor features an integrated housing that effectively protects internal components and is dust and drop-resistant.
3.Imported components with precise testing. Resists 8/20µs, 500V surges. Drive current up to 400mA.
4.Wide range of applications; Can provide technical solutions for various industrial applications
5.High-quality flexible conduit cables are safe and stable. High-quality cables are flexible, bend-resistant, and more stable.
6.High anti-interference frequency and long life
7.Factory direct sales; Quality assurance; Two-year warranty
8.Three standard protection circuits; Reverse power protection circuit; Reverse output protection circuit; Output short-circuit protection circuit; The standard configuration of the above circuits significantly reduces the risk of sensor failure due to incorrect wiring.
Advantages
- Customizable 10KHz high-frequency response for high-precision detection, leading the industry
- Wide voltage range, multiple protections, strong anti-interference performance
- Complete specifications and diverse shapes, solving installation difficulties in different scenarios
- Clear and bright LED indicator lights, with clear and easy-to-see movements
- RoHS-certified PVC flame-retardant wire, pursuing ultimate reliability
- Customizable IP67 waterproof series, customized according to your needs
FAQ
Hot Tags: photoelectric slot sensor, China photoelectric slot sensor manufacturers, suppliers, factory
Slot type sensor specifications
| Model | Detection method | Detection distance | Detect object size | Different distance | Connection method | NPN/PNP | Indicator light | Control | Action mode | Voltage | Working current | Load current | Residual voltage | Response frequency | Protection circuit | Ambient temperature | Environment humidity | Protection level |
| GPS-670-N-2m | Through-beam type (slot type) | 5mm (groove width) | Above 2*0.8mm | Below 0.025mm | 4-wire lead-out (standard wire length 2m) | NPN | Red/Incoming light is on/Blackout light is off | 908nm | Normally open/normally closed (white line normally open/black line normally closed) | Below 5-30VDC | Below 8mA | Below 100mA | Below 1V | Above 1KHz | Output polarity reverse protection, power supply reverse polarity protection, surge absorption, short circuit protection | -25～70℃ | 35%~95%RH | IP50 IEC60529 |
| GPS-670-P-2m | Through-beam type (slot type) | 5mm (groove width) | Above 2*0.8mm | Below 0.025mm | 4-wire lead-out (standard wire length 2m) | PNP | Red/Incoming light is on/Blackout light is off | 908nm | Normally open/normally closed (white line normally open/black line normally closed) | Below 5-30VDC | Below 8mA | Below 100mA | Below 1V | Above 1KHz | 35%~95%RH | IP50 IEC60529 | ||
| GPS-671-N-2m | Through-beam type (slot type) | 5mm (groove width) | Above 2*0.8mm | Below 0.025mm | 4-wire lead-out (standard wire length 2m) | NPN | Red/Incoming light is on/Blackout light is off | 908nm | Normally open/normally closed (white line normally open/black line normally closed) | Below 5-30VDC | Below 8mA | Below 100mA | Below 1V | Above 1KHz | 35%~95%RH | IP50 IEC60529 | ||
| GPS-671-P-2m | Through-beam type (slot type) | 5mm (groove width) | Above 2*0.8mm | Below 0.025mm | 4-wire lead-out (standard wire length 2m) | PNP | Red/Incoming light is on/Blackout light is off | 908nm | Normally open/normally closed (white line normally open/black line normally closed) | Below 5-30VDC | Below 8mA | Below 100mA | Below 1V | Above 1KHz | 35%~95%RH | IP50 IEC60529 | ||
| GPS-672-N-2m | Through-beam type (slot type) | 5mm (groove width) | Above 2*0.8mm | Below 0.025mm | 4-wire lead-out (standard wire length 2m) | NPN | Red/Incoming light is on/Blackout light is off | 908nm | Normally open/normally closed (white line normally open/black line normally closed) | Below 5-30VDC | Below 8mA | Below 100mA | Below 1V | Above 1KHz | 35%~95%RH | IP50 IEC60529 | ||
| GPS-672-P-2m | Through-beam type (slot type) | 5mm (groove width) | Above 2*0.8mm | Below 0.025mm | 4-wire lead-out (standard wire length 2m) | PNP | Red/Incoming light is on/Blackout light is off | 908nm | Normally open/normally closed (white line normally open/black line normally closed) | Below 5-30VDC | Below 8mA | Below 100mA | Below 1V | Above 1KHz | 35%~95%RH | IP50 IEC60529 | ||
| GPS-673-N-2m | Through-beam type (slot type) | 5mm (groove width) | Above 2*0.8mm | Below 0.025mm | 4-wire lead-out (standard wire length 2m) | NPN | Red/Incoming light is on/Blackout light is off | 908nm | Normally open/normally closed (white line normally open/black line normally closed) | Below 5-30VDC | Below 8mA | Below 100mA | Below 1V | Above 1KHz | 35%~95%RH | IP50 IEC60529 | ||
| GPS-673-P-2m | Through-beam type (slot type) | 5mm (groove width) | Above 2*0.8mm | Below 0.025mm | 4-wire lead-out (standard wire length 2m) | PNP | Red/Incoming light is on/Blackout light is off | 908nm | Normally open/normally closed (white line normally open/black line normally closed) | Below 5-30VDC | Below 8mA | Below 100mA | Below 1V | Above 1KHz | 35%~95%RH | IP50 IEC60529 | ||
| GPS-674-N-2m | Through-beam type (slot type) | 5mm (groove width) | Above 2*0.8mm | Below 0.025mm | 4-wire lead-out (standard wire length 2m) | NPN | Red/Incoming light is on/Blackout light is off | 908nm | Normally open/normally closed (white line normally open/black line normally closed) | Below 5-30VDC | Below 8mA | Below 100mA | Below 1V | Above 1KHz | 35%~95%RH | IP50 IEC60529 | ||
| GPS-674-P-2m | Through-beam type (slot type) | 5mm (groove width) | Above 2*0.8mm | Below 0.025mm | 4-wire lead-out (standard wire length 2m) | PNP | Red/Incoming light is on/Blackout light is off | 908nm | Normally open/normally closed (white line normally open/black line normally closed) | Below 5-30VDC | Below 8mA | Below 100mA | Below 1V | Above 1KHz | 35%~95%RH | IP50 IEC60529 | ||
| GPS-675-N-2m | Through-beam type (slot type) | 5mm (groove width) | Above 2*0.8mm | Below 0.025mm | 4-wire lead-out (standard wire length 2m) | NPN | Red/Incoming light is on/Blackout light is off | 908nm | Normally open/normally closed (white line normally open/black line normally closed) | Below 5-30VDC | Below 8mA | Below 100mA | Below 1V | Above 1KHz | 35%~95%RH | IP50 IEC60529 | ||
| GPS-675-P-2m | Through-beam type (slot type) | 5mm (groove width) | Above 2*0.8mm | Below 0.025mm | 4-wire lead-out (standard wire length 2m) | PNP | Red/Incoming light is on/Blackout light is off | 908nm | Normally open/normally closed (white line normally open/black line normally closed) | Below 5-30VDC | Below 8mA | Below 100mA | Below 1V | Above 1KHz | 35%~95%RH | IP50 IEC60529 | ||
| GPS-676-N-2m | Through-beam type (slot type) | 5mm (groove width) | Above 2*0.8mm | Below 0.025mm | 4-wire lead-out (standard wire length 2m) | NPN | Red/Incoming light is on/Blackout light is off | 908nm | Normally open/normally closed (white line normally open/black line normally closed) | Below 5-30VDC | Below 8mA | Below 100mA | Below 1V | Above 1KHz | 35%~95%RH | IP50 IEC60529 | ||
| GPS-676-P-2m | Through-beam type (slot type) | 5mm (groove width) | Above 2*0.8mm | Below 0.025mm | 4-wire lead-out (standard wire length 2m) | PNP | Red/Incoming light is on/Blackout light is off | 908nm | Normally open/normally closed (white line normally open/black line normally closed) | Below 5-30VDC | Below 8mA | Below 100mA | Below 1V | Above 1KHz | 35%~95%RH | IP50 IEC60529 | ||
| GPS-677-N-2m | Through-beam type (slot type) | 5mm (groove width) | Above 2*0.8mm | Below 0.025mm | 4-wire lead-out (standard wire length 2m) | NPN | Red/Incoming light is on/Blackout light is off | 908nm | Normally open/normally closed (white line normally open/black line normally closed) | Below 5-30VDC | Below 8mA | Below 100mA | Below 1V | Above 1KHz | 35%~95%RH | IP50 IEC60529 | ||
| GPS-677-P-2m | Through-beam type (slot type) | 5mm (groove width) | Above 2*0.8mm | Below 0.025mm | 4-wire lead-out (standard wire length 2m) | PNP | Red/Incoming light is on/Blackout light is off | 908nm | Normally open/normally closed (white line normally open/black line normally closed) | Below 5-30VDC | Below 8mA | Below 100mA | Below 1V | Above 1KHz | 35%~95%RH | IP50 IEC60529 |
