China Through Beam Sensor Manufacturers Suppliers Factory

Your Professional Through Beam Sensor Supplier

Garantta Sensor Technology (Garantta) is a high-tech enterprise specializing in sensor products. The main products include photoelectric sensor series, fiber optic sensor series, temperature sensor series, proximity sensor series, safety light curtain sensor series, measurement sensor series, flow measurement sensor series, pressure sensor series, liquid level sensor and composite sensor (MEMS).

Through Beam Photoelectric Sensor
1. Separate transmitter and receiver, robust structure. . 2. Square plastic housing for easy installation and fixation. . 3. Features reverse polarity protection and short-circuit protection;
read more

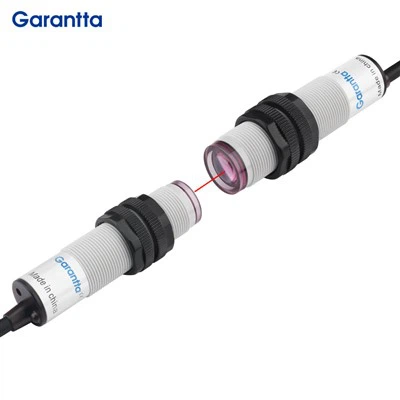

M18 Photoelectric Sensor
1. As a mass-produced standard industrial product, the M18 plastic version boasts a highly competitive cost advantage. . 2. The M18 standard thread (18mm diameter) cylindrical structure facilitates
read more
18mm Photoelectric Sensor
1. The M18 (18mm diameter) cylindrical thread is a standard industrial size, allowing direct screwing into the bracket for mounting, making it particularly suitable for use in compact equipment with
read more
Through Beam Optical Sensor
1. The separate transmitter and receiver structure ensures the beam propagates only once along the detection path, resulting in minimal signal attenuation and enabling high-stability detection over
read more

Why Choose us

Quality Control

Our company maintains a rigorous quality control system led by a dedicated product quality assurance team. From incoming raw material inspection to final batch shipment, all products undergo 100% full inspection in accordance with standardized procedures. This ensures that every item delivered to customers meets the highest quality standards.

Professional Team

We have a highly experienced technical team consisting of more than 10 professional engineers, each with over five years of industry experience. The team includes five structural engineers and five electronic engineers who are responsible for product design, performance optimization, and continuous innovation.

24-Hour Online Service

Our professional international sales team is available around the clock to respond to customer inquiries promptly, typically within two hours. With strong cross-cultural communication capabilities and expertise in international trade, our team ensures smooth and efficient order processing for clients worldwide.

Parameter

Technical Parameter

Model

Detection method

Detection distance

Wiring method

Control output

Light source

Reaction time

Display indicator

Control output

Power supply

Working environment brightness

Power consumption

Vibration resistance

GPS-T61

Through-beam type

50mm-15000mm

NPN

1 output port, equipped with short circuit protection and automatic anti-interference function

Red light 650NM, laser diode

Within 1MS

Operation indicator: Green LED indicates power indicator, red LED indicates output

NPN/PNP open collector 24V, maximum 100mA (main component only) Residual voltage: 1V

Between 12 and 24VDC ±10%, floating ratio (P-P): 10% maximum Level 2

Incandescent: Maximum: 20,000lux, Daylight: Maximum: 30,000lux

Standard mode: Max 300mW
Maximum voltage: 24V

10 to 55Hz, dual amplitude: 1.5mm, X, Y, Z axes are 2 hours each

GPS-T81

PNP

GPS-D61

Diffuse reflection type

5mm-100mm

NPN

Red light 635NM, 4-element light-emitting diode body

GPS-D81

PNP

GPS-D62

20mm-400mm

NPN

GPS-D82

PNP

GPS-R61

Retro-reflective type

30mm-4000mm

NPN

Laser red light 650NM

GPS-R81

PNP

GPS-S61

Background-suppression retroreflective type

10mm-100mm(60mm Built-in background suppression)

NPN

Red light 635NM, 4-element light-emitting diode body

GPS-S81

PNP

GPS-S62

20-700mm(300mm Built-in background suppression)

NPN

GPS-S82

PNP

GPS-B61

Transparent bottle retroreflective

20mm-4500mm

NPN

Red PIN POINT LED, 4-element light-emitting diode body

Operation indicator light: The green LED indicator light indicates the power indicator light, and the red LED indicates the output. During self-learning, the red light and the green light are used together as the self-learning status light.

GPS-B81

PNP

Benefits of Through Beam Sensor

Built-in amplifier, resistant to sunlight interference
Through Beam Photoelectric Sensor (red light source, detection distance up to 10m) products are equipped with filters to prevent mutua! interference and can be used to resist sunlight;
Diffuse reflection products have a sensing distance of 300mm, built-in high-performance chips, and stable performance;

Improved the consistency between the optical axis and the mechanical axis
The deviation between the optical axis and the mechanical axis is controlled within +2.5. lt only needs to be installed in conjunction with the mechanical axis to achieve high-precision alignment with the optical axis. Through-beam and mirror-reflective types achieve longer detection distances.

Even if the wiring is wrong, the sensor can be protected
Equipped with output reverse polarity protection function (add reverse polarity protection diodes to the output line)

Application of Through Beam Sensor

Object detection and counting in production lines or conveyors
Mainly found in food processing and pharmaceutical industries, these sensors are used to detect the presence or absence of objects in all stages of processing. For example, a packing stage may use these sensors to accurately count a defined number of objects to be packaged.

Security systems
Through beam sensors can be used as a ‘tripwire’ mechanism to detect unwanted access to a secure area. If a person/animal crosses the beam, the signal can be used to trigger safety locks or generate an alert.

Logistics

We will help you to choose the best shipping way according to your detail requirements. By sea, by air, or by express, etc.

1. The time frame of an order delivery is divided into two parts:
●Processing time: 7-14 Days
●Shipping time: 20~30 Days
2. Shipping methods: DDP, DAP, EXW, etc.
3. Shipping fee:The shipping fee will be changed according to every pacel's weight.

Certificate


FAQ

Q: How does a through beam sensor work?

A: The transmitter unit emits a light beam aimed towards the receiver unit. When an object obstructs the light beam, the receiver detects the absence of the beam and triggers the output. Through beam sensors find applications in applications such as counting items travelling down a conveyor line.

Q: What is the range of a through beam sensor?

A: Throughbeam photoelectric sensors always consist of a sensor and receiver. With ranges up to 150 m (800 m for object radiation). Cubic and cylindrical designs.

Q: What is the setup and function of a through beam sensor?

A: These sensors consist of two components: an emitter and a receiver. The emitter sends a light beam toward the receiver, and when this beam is interrupted, the sensor triggers. A common example is the safety system on a garage door, which detects obstructions to prevent the door from closing.

As one of the leading through beam sensor manufacturers and suppliers in China, we warmly welcome you to buy discount through beam sensor for sale here from our factory. All our products are with high quality and competitive price.

working of photo sensor, through beam type sensor, through beam sensor application
