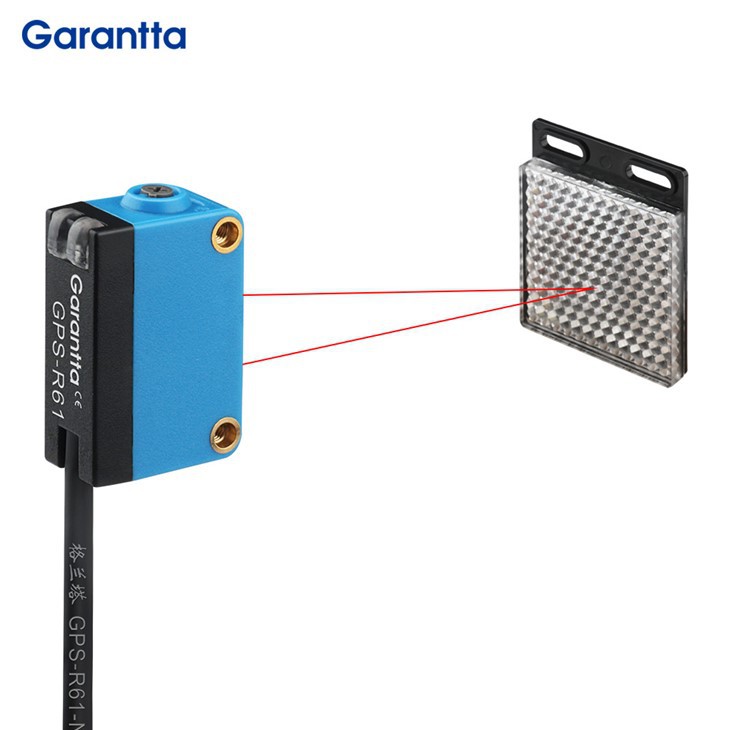

In a retro reflective photoelectric sensor, an optical path is created between the sensor and a specialized reflector. When an object interrupts the light beam, it triggers detection. Compared to diffuse-reflective sensors, retro-reflective models generally offer a longer sensing range. Some sensors utilize red visible light LEDs, which make it easier to install and align the reflectors. Corner prism reflectors are designed to precisely return light energy along parallel axes to the receiver, ensuring accurate and reliable detection.
Features of retro reflective photoelectric sensor
- Detection Range: 30mm to 4000mm.
- Simplified Installation: Easier wiring and optical axis alignment reduce setup time and labor.
- Versatile Detection: Less affected by the color or angle of the detected object.
- Transparent Object Detection: The light passes through the object twice, making it ideal for detecting transparent materials.
- Mirror Surface Handling: If the object's surface is reflective, it can interfere with detection. However, sensors equipped with an MSR (Mirror Surface Rejection) function can easily resolve this issue.
- Close-Range Blind Zone: There is a blind zone at very close distances, which should be considered during installation.
Applications of retro reflective photoelectric sensor
1. Automation and Control Systems:
Retro-reflective photoelectric sensors are widely used in intelligent access control systems, automatic vending machines, and automated parking systems to detect the entry or exit of objects.
2 .Industrial Automation:
These sensors are ideal for detecting the presence or position of objects in applications such as packaging, assembly lines, and robotics.
3 .Smart Home Technology:
Retro-reflective photoelectric sensors can monitor whether doors or windows are closed, detect the operational status of home appliances, and enable intelligent home automation.
FAQ
Q: How to distinguish between through-beam optical sensors, retro-reflective photoelectric sensors, and diffuse-reflective photoelectric switches?
The through-beam one is two sensor heads one transmitting and one receiving; the retro-reflective photoelectric sensor is one sensor plus a reflecting plate reflector;
Diffuse reflection is just a single sensor.
For general brand photoelectric switches, the detection distance is tens of meters for through reflection, tens of centimeters for mirror reflection, and tens of millimeters for diffuse reflection!
The essential difference between them is the working principle of light.
Q: Are diffuse reflection and mirror reflective photoelectric switches the same?
