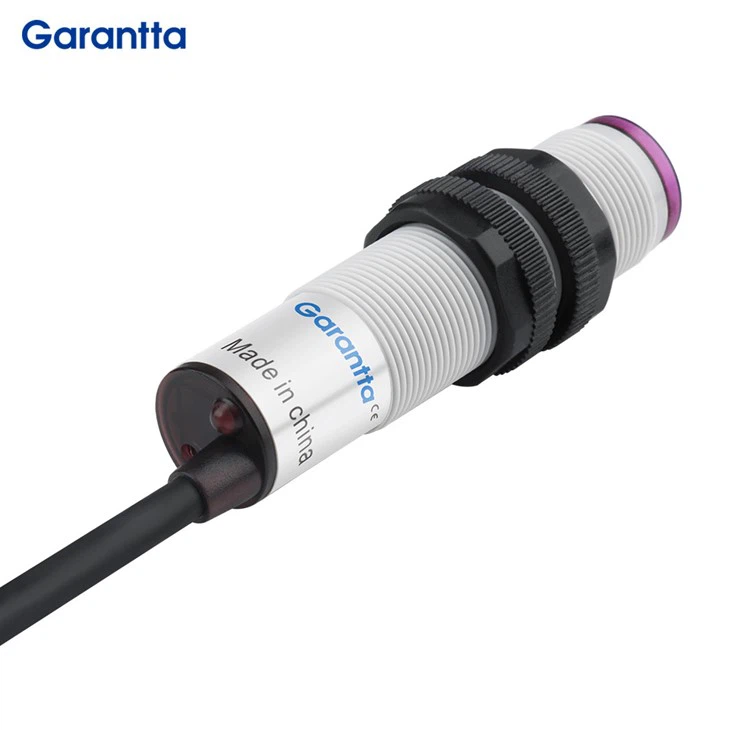

The M18 Optical Sensor is a common type of photoelectric sensor, typically in the form of an M18 (18mm diameter) cylindrical shape. It detects objects by emitting and receiving infrared beams. Depending on their operating principles, M18 Optical Sensors can be categorized as diffuse reflection, through-beam, and specular reflection. They are widely used in various automation equipment and systems, such as automatic doors, conveyor belts, and counters.
Features of M18 optical sensor
- Plastic Housing: Economical and practical design.
- Cylindrical M18 Design: Compact size for easy installation.
- Sensitivity Adjustment Knob: Simple and convenient tuning.
- Short Circuit and Power Polarity Protection: Enhanced durability and safety.
- Action Mode Selection: Configurable via the control line for flexible operation.
- Long Lifespan: Ensures stable and reliable switching performance.
- Sealed Control Unit: Protects internal components from external environmental factors.
- Versatile Applications: Ideal for automation tasks such as counting, speed measurement, and more.
Precautions for Using M18 Optical Sensors
1. Avoid Strong Light Sources
While M18 Photoelectric Sensor can generally operate stably under high ambient light, it's important to avoid aligning the sensor's optical axis directly with intense light sources such as sunlight or incandescent bulbs. If the angle between the sensor's optical axis and the strong light source cannot be adjusted, consider installing a light-shielding plate or a long light-shielding tube around the sensor's top to mitigate interference.
2. Prevent Mutual Interference
M18 optical sensors typically feature an automatic anti-interference function, so mutual interference is rarely a concern. However, when multiple infrared photoelectric sensors are installed in parallel and close proximity, adjacent-group interference can occur. To prevent this, cross-set the projector and receiver. For more than two groups, increase the spacing between them. Alternatively, using models with different frequencies is an effective solution.
3. Consider Mirror Angle Effects
If the object being detected has a glossy or smooth metal surface, its high reflectivity can create a mirror-like effect. To avoid malfunctions, install the projector and the object at an angle of 10–20°, ensuring the optical axis is not perpendicular to the object.
4. Eliminate Background Object Interference
When using reflective diffuse-type projectors or receivers, unstable detection may occur if the detected object is too close to the background or if the background is smooth and highly reflective. To resolve this, use distance-limited projectors and receivers, maintain a greater distance from the background, remove the background, or paint it black to reduce reflectivity. Alternatively, making the background rough and dark can also help eliminate interference.
Applications
- Automatic Doors:
Diffuse-reflection or through-beam M18 photoelectric sensors are often used to detect people entering or leaving a room, triggering the opening and closing of automatic doors.
- Conveyor Belts:
M18 photoelectric sensors can be used to detect objects on conveyor belts, enabling automatic counting and sorting.
- Counters:
Through-beam M18 photoelectric sensors can be used to accurately count objects passing through a light beam, such as products on a production line.
- Security Systems:
M18 photoelectric sensors can be used in security light barriers, access control systems, and other applications to enhance safety.
FAQ
Q： In what places does the M18 Optical Sensor malfunction, and should it be avoided as much as possible?
① Places with a lot of dust;
② Places with a lot of corrosive gases;
③ Places where water, oil, and chemicals may splash directly;
④ Outdoor or places with strong direct sunlight without shading measures.
⑤ Places where the ambient temperature changes beyond the specified range of the product;
⑥ Places with large vibration and impact, but no shockproof measures are taken.
