M18 Inductive Proximity Sensor

M18 Inductive Proximity Sensor
Details:
1. Standard M18 thread design for easy system integration

2. Nickel-plated copper housing provides excellent resistance to mechanical stress and impact

3. Equipped with LED status indicators (solid or flashing) for easy installation, commissioning, and fault diagnosis

4. Features reverse power supply protection, short circuit protection, surge absorption, and overload protection to prevent damage caused by wiring errors or electrical interference

5. Offers a variety of standard detection distances from 1.5mm (M8) to 20mm (M30) to meet the accuracy requirements of different applications

Send Inquiry
Download
Description
Technical Parameters
Size & Wiring

The Garantta M18 Inductive Proximity Sensor is an M18 metal threaded cylinder with high accuracy. It uses a dedicated IC, has a long service life, and is highly reliable. The compact design of sensors can effectively save installation space and reduce mechanical damage over longer distances. The sturdy and durable design ensures less downtime and higher system throughput, making it a universal inductive sensor suitable for industrial environments. Mainly used for automatic equipment workpiece positioning, detection, and presence detection



Classification of M18 inductive proximity sensor



  • Shielded type: also called embedded type, flush type. The sides of this type of detection coil are covered with metal. Can be embedded in metal.
  • Unshielded type: The sides of this type of detection coil are not covered with metal. Compared with the shielded type, the detection distance is longer. However, since it is easily affected by the surrounding metal, you need to pay attention to the installation location.



Main features

Choose the inductive proximity sensor that suits you best.

Adopting non-contact position detection, there is no wear on the surface of the target object, and it has extremely high reliability

01

Clear and visible indicator light design makes it easier to determine the working status of the switch

02

Made with a dedicated IC for more stable performance

03

Equipped with short-circuit protection and polarity protection functions; Capable of performing various limit and counting controls

04



M8 M12 M18 M30 inductive sensor-1
M8 inductive proximity sensor
M8 M12 M18 M30 inductive sensor-2
M12 inductive proximity sensor
M8 M12 M18 M30 inductive sensor-4
M18 inductive proximity sensor
M8 M12 M18 M30 inductive sensor-6
M3- inductive proximity sensor



FAQ



FAQ

Q: What is the main difference between shielded/unshielded M18 Inductive Proximity Sensor?

A: The main difference between the two is:

1) In terms of installation environment, the Shielded type can be embedded in metal for installation, while the non-shielded type cannot be embedded in metal for installation.

2) In terms of detection distance, the detection distance of unshielded switches is longer than that of shielded switches.

3) In terms of parallel installation, Shielded switches require installation spacing close to twice the diameter of the switch; non-shielded switches require installation spacing of 4 times the diameter of the switch.

Q: I noticed that your company's cylindrical proximity switch has a metal shell and a resin shell. What are the main differences between these two types of proximity switches?

A: There are two types of cylindrical proximity switches: metal shell and resin shell. The main differences are as follows. Metal shell type: The shell is sturdy and has a high tightening torque during installation; The installation thread (external thread) has relatively high accuracy. Resin shell type: cheaper than metal shell, generally has better water resistance. The external installation thread accuracy is relatively poor, and the tightening torque is limited.

Q: Can inductive sensors detect magnets?

A: Usually, inductive sensors cannot directly detect magnets because they mainly rely on detecting the magnetic permeability of metal objects rather than the magnetic field strength. However, if the magnet is made of magnetic metals such as iron or nickel, inductive sensors can detect it because the magnetic metal changes the sensor's magnetic field, triggering detection

Q: What is the error range of the proximity switch sensing distance?

A: The error between the sensing distance of the sensor and the standard sensing distance is generally ± 10%

Q: What is the inspection method for the M18 Inductive Proximity Sensor?

A: Inductive proximity switches belong to contactless switches (i.e., switch type sensors), which are generally used in mechanical automatic control equipment that requires high positioning accuracy, long service life, fast response speed, and easy installation. They are mainly used as limit, reset, travel positioning, counting, automatic protection, and replacement of micro switches. The detected object of the inductive proximity switch sensor must be a metal object, and for non-metallic objects, the inductive proximity switch has no action. It has the characteristics of waterproofing, shock resistance, oil resistance, dust resistance, and corrosion resistance, and has strong applicability to harsh environments.



Hot Tags: m18 inductive proximity sensor, China m18 inductive proximity sensor manufacturers, suppliers, factory, programmable proximity sensor, diffuse reflective type sensor, photoelectric sensor diffuse type, power system sensor, type k thermocouple max temperature, Photo Beam Sensor alarm

Standard unshielded cylindrical type inductive sensor specification




Model Detection distance Set distance Response difference
distance		 NPN/PNP Action mode Standard test substance Voltage Current consumption Load current Residual voltage Switch
frequency		 Protection circuit Ambient temperature Protection level
GPL-M18KU10-NO-2m 10mm 0～8mm Within 10% detection distance NPN Normally open Mild steel (ST37) Below 10-30VDC Below 8mA Below 100mA Below 1V 400Hz   -25～70℃ IP67
GPL-M18KU10-NC-2m NPN Normally closed
GPL-M18KU10-PO-2m PNP Normally open
GPL-M18KU10-PC-2m PNP Normally closed
GPL-M18LU10-NO-2m NPN Normally open
GPL-M18LU10-NC-2m NPN Normally closed
GPL-M18LU10-PO-2m PNP Normally open
GPL-M18LU10-PC-2m PNP Normally closed



Standard shielded cylindrical inductive proximity sensor specification




Model Detection distance Set distance Response difference
distance		 NPN/PNP Action mode Standard test substance Voltage Current consumption Load current Residual voltage Switch
frequency		 Protection circuit Ambient temperature Protection level
GPL-M18KS05-NO-2m 5mm 0-4mm Within 10% detection distance NPN Normally open Mild steel (ST37) Below 10-30VDC Below 8mA Below 100mA Below 1V 400Hz   -25～70℃ IP67
GPL-M18KS05-NC-2m Normally closed
GPL-M18KS05-PO-2m PNP Normally open
GPL-M18KS05-PC-2m Normally closed
GPL-M18LS05-NO-2m NPN Normally open
GPL-M18LS05-NC-2m Normally closed
GPL-M18LS05-PO-2m PNP Normally open
GPL-M18LS05-PC-2m Normally closed



Double distance unshielded circular inductor proximity sensor specification




Model Detection distance Set distance Response difference
distance		 NPN/PNP Action mode Standard test substance Voltage Current consumption Load current Residual voltage Switch
frequency		 Protection circuit Ambient temperature Protection level
GPL-M18KU16-NO-2m 16mm 0～12.8mm Within 10% detection distance NPN Normally open Mild steel (ST37) Below 10-30VDC Below 8mA 100mA以下 Below 1V 400Hz   -25～70℃ IP67
GPL-M18KU16-NC-2m NPN Normally closed
GPL-M18KU16-PO-2m PNP Normally open
GPL-M18KU16-PC-2m PNP Normally closed
GPL-M18LU16-NO-2m NPN Normally open
GPL-M18LU16-NC-2m NPN Normally closed
GPL-M18LU16-PO-2m PNP Normally open
GPL-M18LU16-PC-2m PNP Normally closed



Double distance shielded circular inductor proximity sensor specification




Model Detection distance Set distance Response difference
distance		 NPN/PNP Action mode Standard test substance Voltage Current consumption Load current Residual voltage Switch
frequency		 Protection circuit Ambient temperature Protection level
GPL-M18KS08-NO-2m 8mm 0-6.4mm Within 10% detection distance NPN Normally open Mild steel (ST37) Below 10-30VDC Below 8mA 100mA以下 Below 1V 500Hz   -25～70℃ IP67
GPL-M18KS08-NC-2m Normally closed
GPL-M18KS08-PO-2m PNP Normally open
GPL-M18KS08-PC-2m Normally closed
GPL-M18LS08-NO-2m NPN Normally open
GPL-M18LS08-NC-2m Normally closed
GPL-M18LS08-PO-2m PNP Normally open
GPL-M18LS08-PC-2m Normally closed



m18 inductive proximity sensor 1

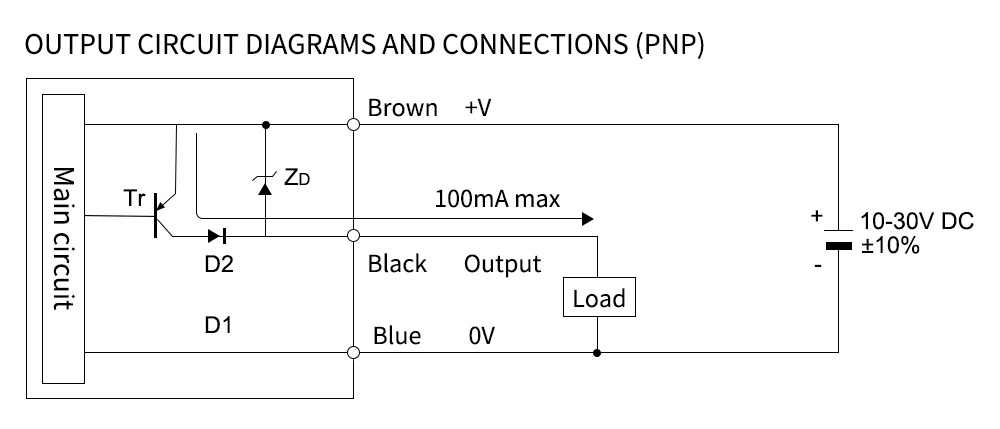

m18 inductive proximity sensor 2

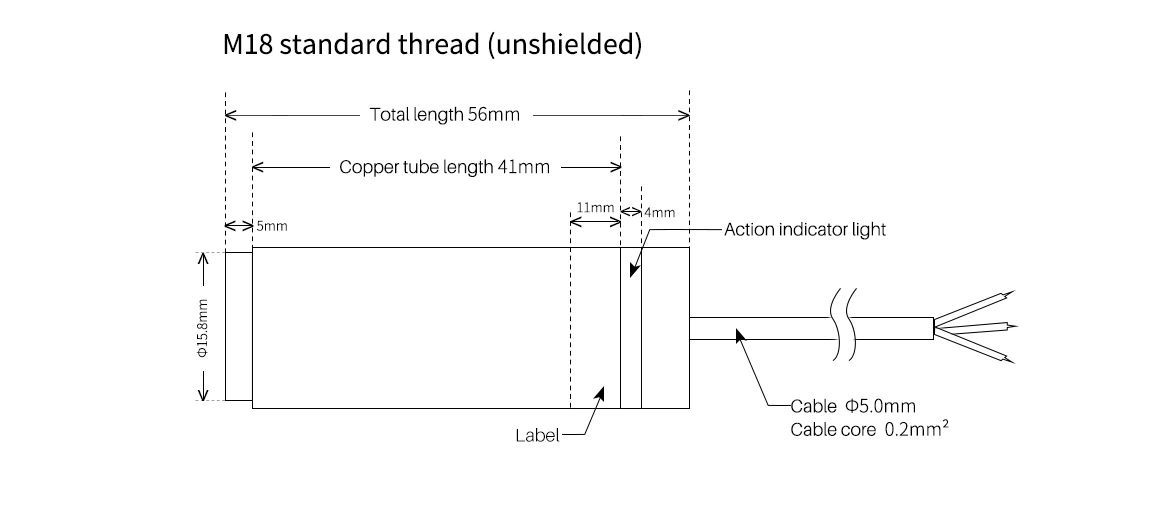

m18 inductive proximity sensor 5

m18 inductive proximity sensor 6

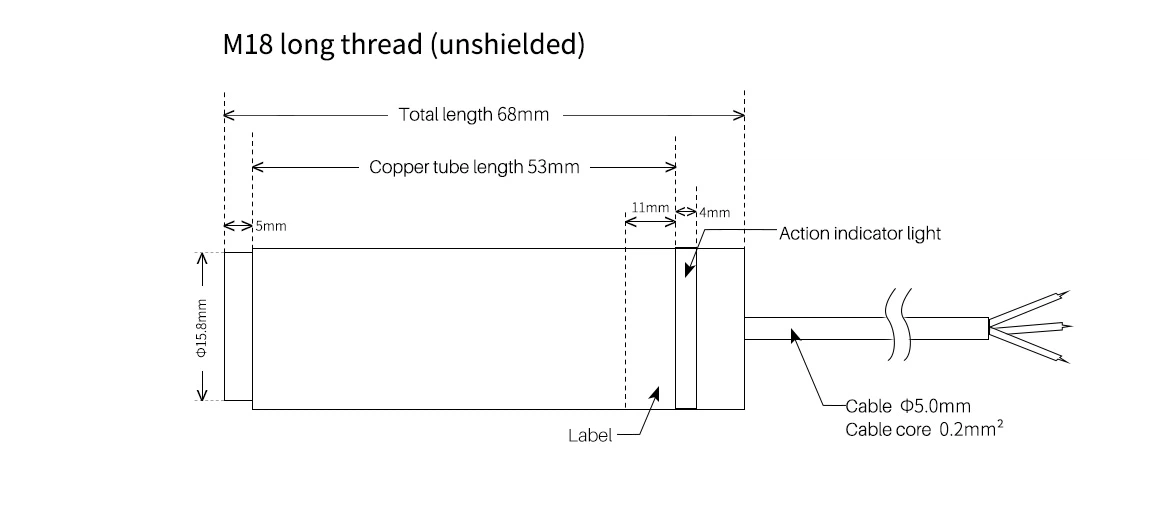

m18 inductive proximity sensor 7

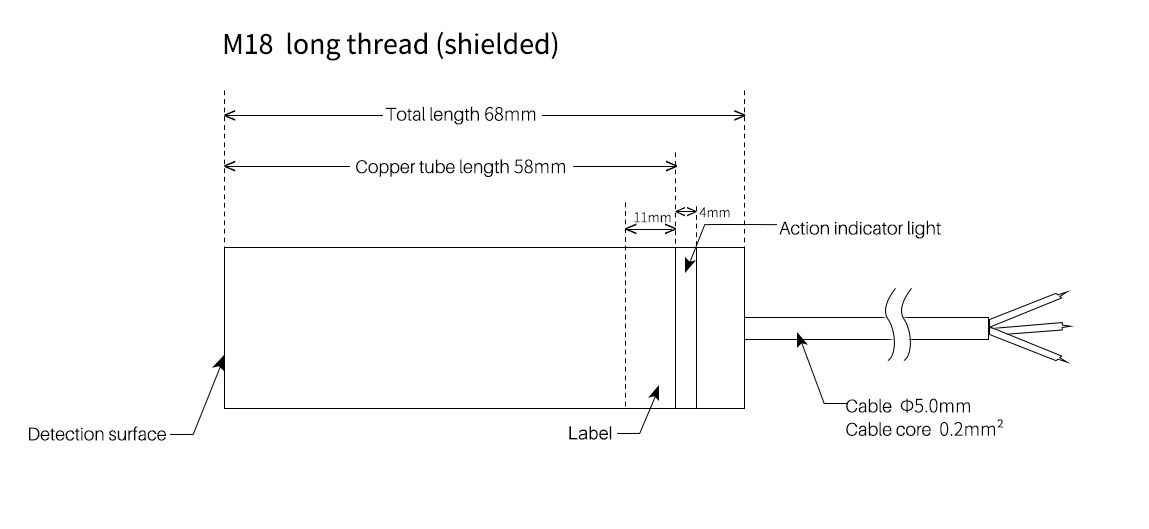

m18 inductive proximity sensor 8
