NPN Proximity Switch

Simply put, PNP NPN Proximity Switch transmits data about an object's presence or motion into an electrical signal. When an object enters their range, they output an on-state signal. There are some key differences in how different proximity sensors operate, as described below:

• How Capacitive Proximity Sensors Work

Capacitive proximity sensors work by detecting changes in capacitance between the sensor and the object. Factors such as distance and object size affect the capacitance. The sensor simply detects any resulting capacitance change between the two.

• How Inductive Proximity Sensors Work

Inductive sensors detect eddy currents, which are generated by an external magnetic field on a conductive surface and cause magnetic losses. A detection coil generates an AC magnetic field and detects the impedance change caused by the generated eddy currents.

• How Magnetic Proximity Switches Work

Magnetic proximity switches are relatively simple and straightforward. The reed end of the switch is operated by a magnet. When the reed switch is activated and in the open state, the sensor also turns on.

Notably, proximity sensors are unaffected by the color of the surface they detect. They rely purely on the object's motion and movement, so its color does not affect the sensor's effectiveness.

01 - NO/NC
NO: Normally Open; NC: Normally Closed
02 - NPN/PNP
NPN: Indicates the sensor has a built-in NPN transistor as the output driver transistor. PNP: Indicates the sensor has a built-in PNP transistor as the output driver transistor.
03 - NPN/NO
The sensor has a built-in NPN output transistor. Under normal conditions, the NPN output transistor is inactive, and the black wire outputs a high level. When an object is detected, the NPN output transistor activates, and the black wire outputs a low level. The drive current is less than 200mA.

04 - NPN NC
The sensor has a built-in NPN output transistor. Normally, it is normally closed. The NPN output transistor is activated, and the black wire outputs a low level. The drive current is less than 200mA. When an object is detected, the NPN output transistor returns to inactivity, and the black wire outputs a high level.

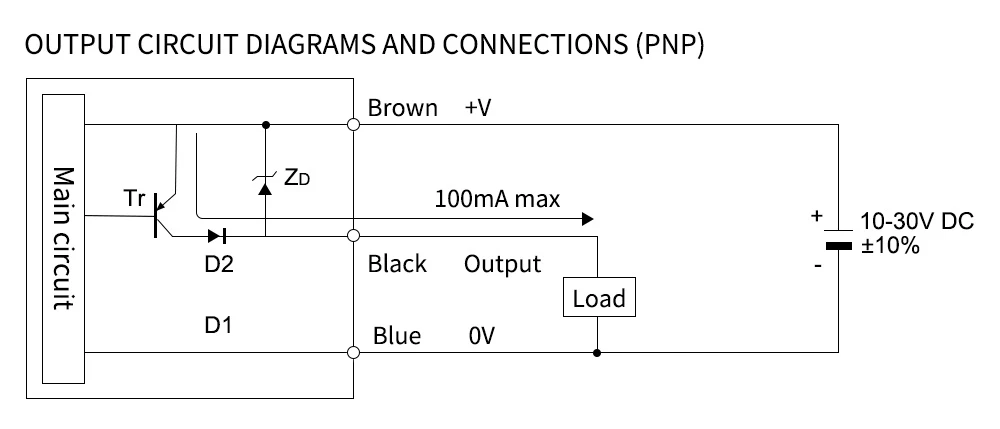

05 - PNP NO
The sensor has a built-in PNP output transistor. Normally, it is normally open. The PNP output transistor is inactive, and the black wire outputs a low level. When an object is detected, the PNP output transistor activates, and the black wire outputs a high level. The drive current is less than 200mA.

06 - PNP NC
The sensor has a built-in PNP output transistor. Normally, it is normally closed. The NPN output transistor is activated, and the black wire outputs a high level. The drive current is less than 200 mA. When an object is detected, the NPN output transistor returns to inactivity, and the black wire outputs a low level.

How do I choose the right miniature square PNP NPN Proximity Switch for my application? What key parameters need to be considered?

A1: When selecting a sensor, please focus on the following five parameters to ensure stable and reliable operation:

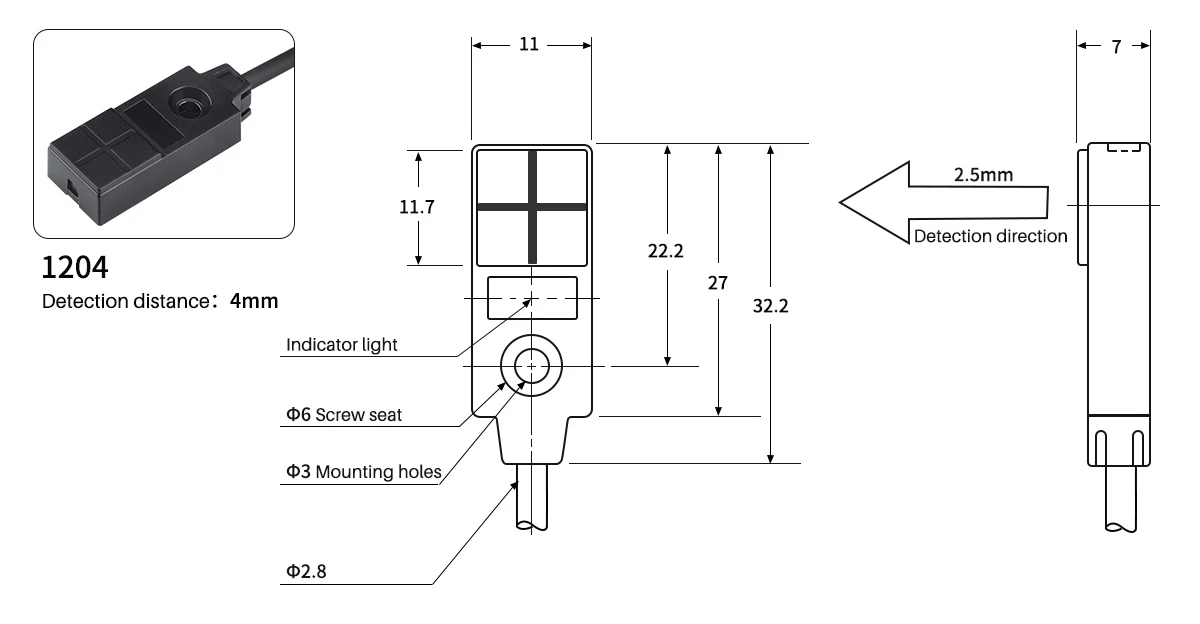

Detection Distance: This is a core parameter, referring to the distance at which the sensor can reliably detect standard metal targets (usually low-carbon steel). Miniature square sensors typically have short detection distances, such as 1mm, 2mm, or 4mm. In practical applications, the attenuation coefficient must be considered: for non-ferrous metals (such as copper and aluminum), the effective detection distance will be significantly reduced (usually 30%-60% of the nominal value).

Dimensions and Installation Method: Square sensors are generally available in embedded (shielded) and non-embedded (unshielded) types.

Embedded Type: The sensor's metal casing covers the side of the sensing surface, allowing only frontal detection. It can be installed flush with the surrounding metal without false triggering and has strong resistance to lateral interference, but the detection distance is relatively short.

Non-embedded type: There is no metal shielding around the sensing surface, resulting in a longer detection distance. However, sufficient metal-free space must be left around the sensor during installation; otherwise, false triggering or performance degradation may occur.

Output type: Select according to your control system.

NPN type (current inflow): When the output is low, current flows from the load to the sensor output. Commonly found in Asian and European PLCs.

PNP type (current outflow): When the output is high, current flows from the sensor output to the load. Commonly found in European PLCs.

Normally open (NO) / Normally closed (NC): Select according to logic requirements.

Power supply voltage: Typically a wide DC voltage range of 10-30V; ensure compatibility with your power supply.

Target material and size: The object to be detected must be metallic. Ferromagnetic metals (such as steel and iron) show the best detection results. The target object size should not be smaller than the sensor's sensing surface size to ensure stable detection.

Recommendation: It is best to conduct actual condition testing before finalizing the design.
